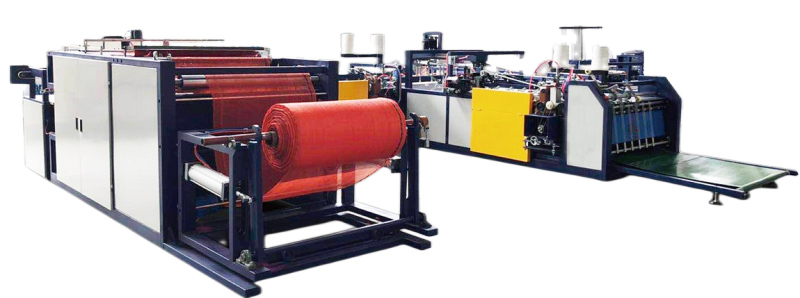

This machine is suitable for automatic cutting , edge-folding and bag-bottom sewing of the single-piece full-roll mesh fabric of PP and PE.
According to the actual production of the user, it can automatically detect the color mark of the bag, the hot cutting bag is turned to the conveyor (folded in half), and then turn to the bottom of the bag (internal single, external double fold optional), and then turn to the automatic counting and stacking of the finished product (internal single, external double folding optional).
Technical characteristics：
1).PLC programmable automatic control, high degree of automation.
2).Touch screen operation, simple and easy to operate.
3).The servo motor feed the bag and the control length precision .
4).System alarm, electrical failure and working state are clear at a glance.
5).The main components and electrical components are imported from Japan and Taiwan, and the working performance is reliable.
6).Adopt hot cutting
7).Equipped with a unique mesh bag folding device
8).Adopt push-down manipulator to ensure stable and efficient bag feeding.
9).The bag side (bottom) can be sewn with single-or double-fold
10).Compact structure and small space occupation
|
Main technical parameters |
||
|
1 |
Diameter of fabric roller |
Max.1200mm |
|
2 |
Width of roller |
300 ~ 900 mm |
|
3 |
Length of cutting |
500 ~ 1200 mm |
|
4 |
Cutting precision |
± 2 mm |
|
5 |
Bottom fold width of bag |
20 ~ 30 mm |
|
6 |
Capacity |
average 20~40pcs/min |
|
7 |
Sewing stitching width |
7 ~ 12 mm |
|
8 |
Total power |
14kw |
|
9 |
Heating power |
2kw |
|
10 |
Air consumption |
None |
|
11 |
Dimension |
6000 × 6010 × 1500 mm |
|
12 |
Weight |
3Ton |
|
13 |
Finished bag |
Min.dimension: 360X500mm |
|
Max.Dimension: 650X850 mm |
||
|
Min. weight of each bag: 20gram |
||
