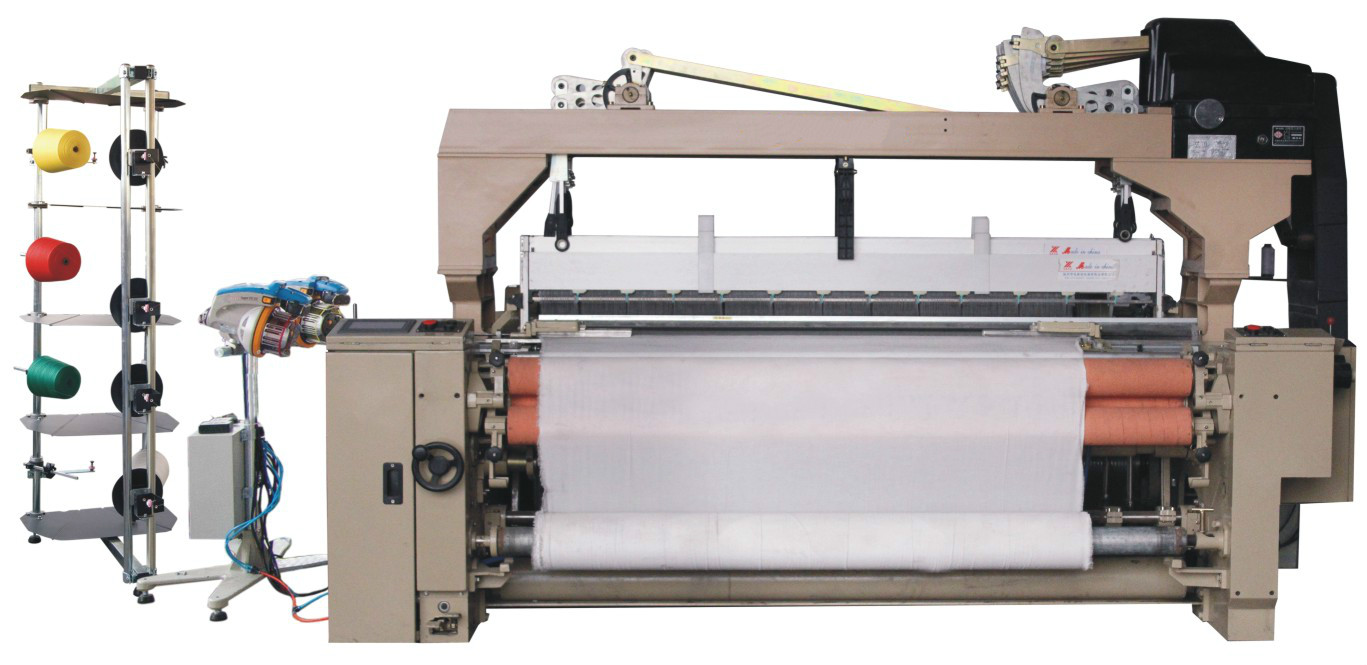

UA710 Smart air jet loom/economic air jet loom for cotton fabric is developed based on water jet loom, with transmission system, mechanical let-off, mechanical take-up, shedding section and frame body the same as water jet loom.The differences are with beating section, weft insertion by centralized air jet and human-machine interface displace system. The successful development of the model reduces user equipment cost, which means simple fabrics can be made by low–cost machine. It is suitable to weave cotton, polyester and blend fabric.
Features:
1-Great performance,affordable cost lead you to a further lower production cost.
2-Substantial standard collocation, abundant and cheap fittings lowered the clients' repair and running cost.
3-Electronic let-off, which effectively avoid the problem of uneven weaving.
4-Electronic oscillatory weft feeder is suitable for varies of fabric.
5-Large touch screen, which is clear and visual, and is convenient to set the function and weaving parameters.
6-Reed space is from 190cm to 280cm, and this loom can weaving 6 color fabric.
7-Many options available:shedding could be positive cam,negative cam or electronic dobby shedding,ELO,ETU,electronic feeder,bi-optical feelers,positive stability devices.
|
筘幅 Reed Space |
公称筘幅 190、210、230、280、340(cm) |
|
纬纱选择 Weft selection |
单喷、双喷、四喷任意选纬 Mechanical or electric feeder (single or double nozzle electric feeder) |
|
动力 Motor |
通过电磁制动器定位停车控制。 Electromagnet brake pan; |
|
马达 Power |
1.8kw、2.2kw、2.8kw、3.5kw. |
|
适用车速 Running speed |
每分钟500~700转 500〜700rpm |
|
引纬形式 Weft insertion method |
主喷嘴、辅喷嘴并用式,使用异型钢筘,电磁阀控制 Main nozzles auxiliary nozzle, use unusual reed, electromagnetic control |
|
开口 Shedding |
曲柄开口、凸轮开口、多臂开口 Crank, cam, dobby |
|
送经 Let-off |
机械送经 Mechanical |
|
布边 Salvage |
行星齿轮绞边 Planetary gear |
|
剪纬 Cutter |
机械式剪刀 Mechanical |
|
自停装置 Auto-stop |
断纬:2个光电式探纬器 Broken weft, 2 optical feeler |
|
断经:电气式6列接触杆式 Broken warp: 6 lines electric contact bar |
|
|
停车原因显示:在显示屏上显示信息,多功能4色灯式停车显示 Stop reason will be displayed on screen. 4Color led light |
|
|
其它:绞边纱、废边纱断头自停 others: auto stop on broken selvage and scrap trim |
