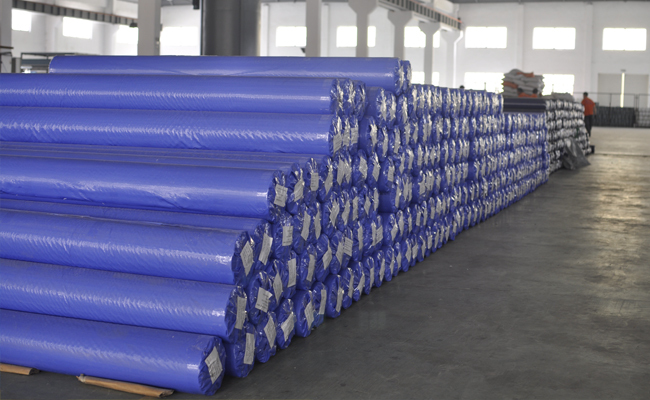

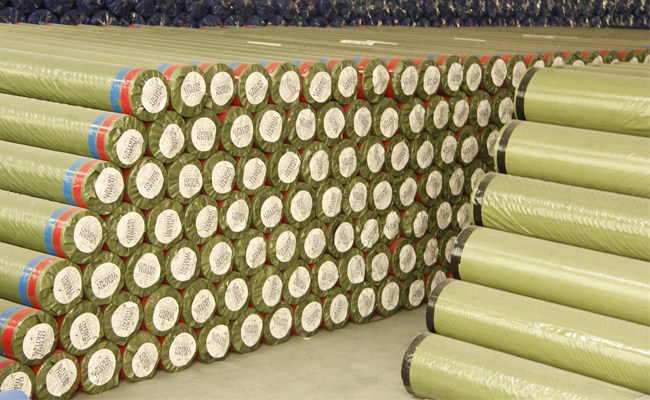

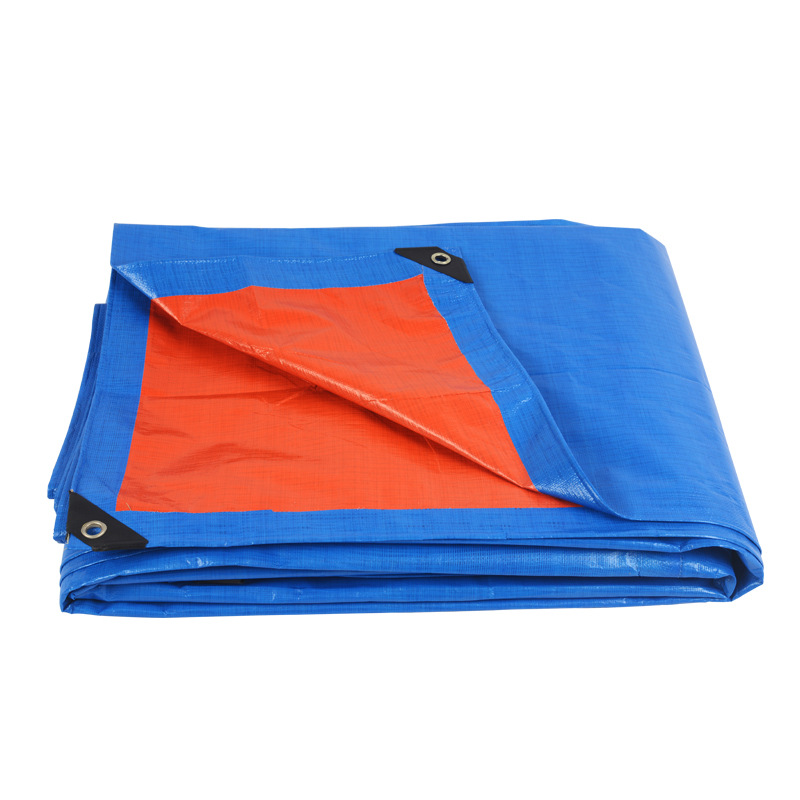

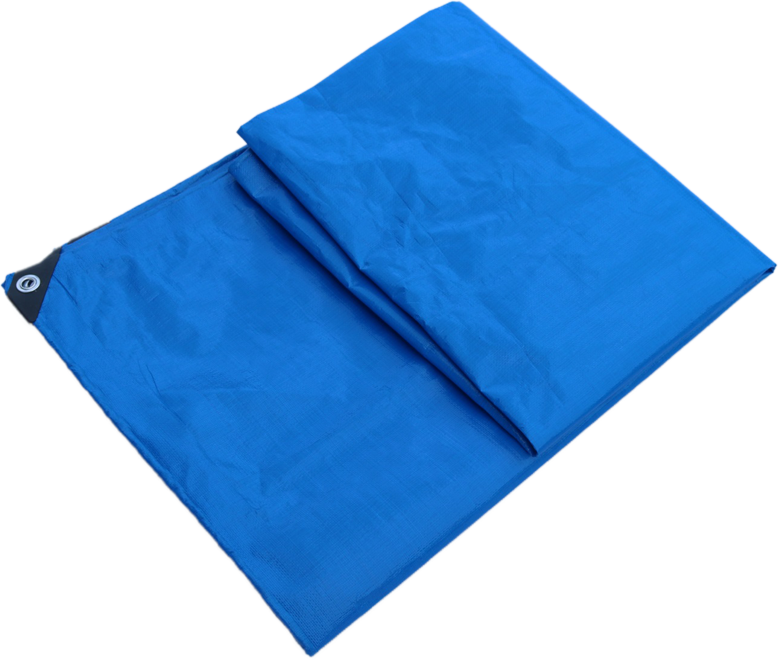

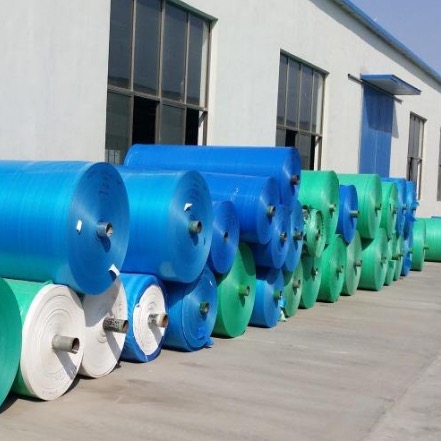

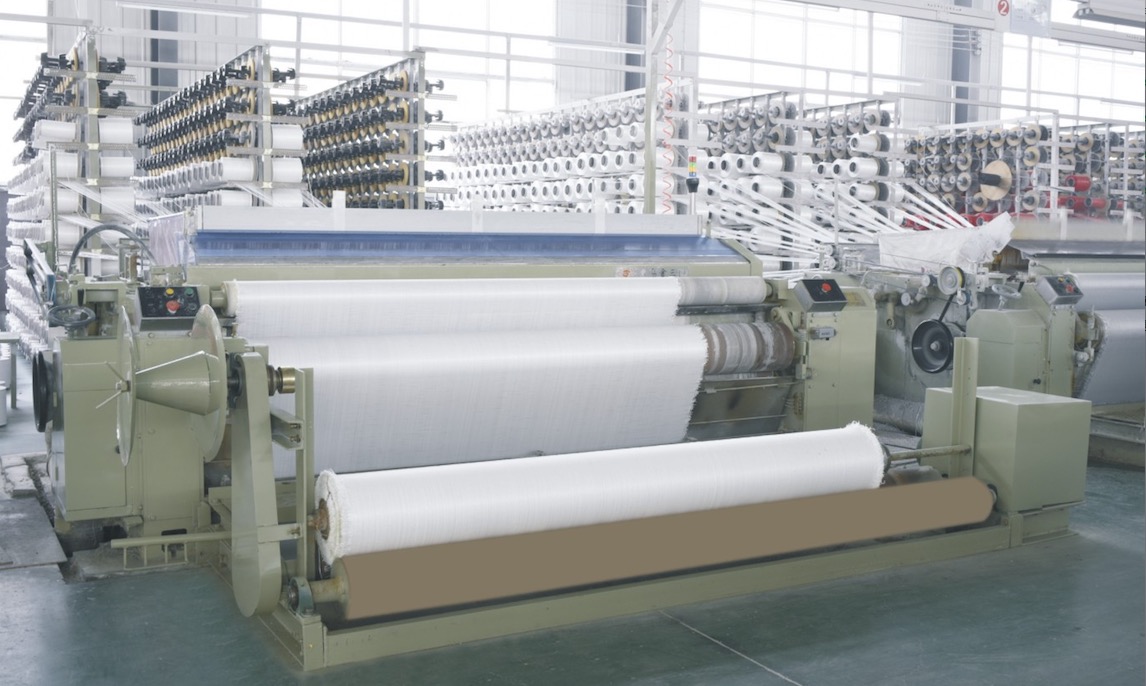

This machine is a new type of plastic weaving equipment, which mainly produces plastic woven fabrics, which can be widely used for weaving tarpaulins, weeding fabrics, geotextiles and other plastic packaging products.
|
织机幅宽 Reed space |
230cm |
260cm |
280cm |
320cm |
360cm |
460cm |
|
有效工作幅宽 Working width |
220cm |
240cm |
260cm |
300cm |
340cm |
440cm |
|
入纬选择 Weft insertion |
单泵单喷 1 pump, 1 nozzle |
|||||
|
积极凸轮柱塞水泵 Positive cam plunger water pump |
||||||
|
间歇可调环形喷嘴 Intermittent adjustable annular nozzle |
||||||
|
测长及储纬装置 Measuring and weft storage |
电子储纬器 Electronic feeder |
|||||
|
纬密调节 Weft density change |
齿轮机械调整 By gear |
|||||
|
变频自动调整 Inverter automatic change |
||||||
|
探纬装置 Weft feeler |
光电感应式探纬 Photoelectric induction weft detection |
|||||
|
电机功率 Motor power |
2.8~4.5kw |
|||||
|
辅助功率 Auxiliary power |
0.7~1.5kw |
|||||
|
开机速度 Speed |
250~700rpm |
|||||
|
开口 Shedding |
下置式曲柄开口 Crank shedding at bottom |
|||||
|
送经 Let-off |
机械连续送经 Mechanical let-off |
|||||
|
卷取 Take-up |
电子积极式连续卷取装置 Electronic take-up |
|||||
|
最大卷布直径 1500mm Max. Winding diameter 1500mm |
||||||
|
可织纱线范围 Weaving yarn range |
克重GSM: 25~250gsm(up to the yarn quality) |
|||||
|
最大丝宽 Max. Weft yarn width: 6.5mm |
||||||
|
最小丝厚 Min. Weft yarn thickness: 0.015mm |
||||||
|
织造密度 Weaving density: 6~18/inch |
||||||
