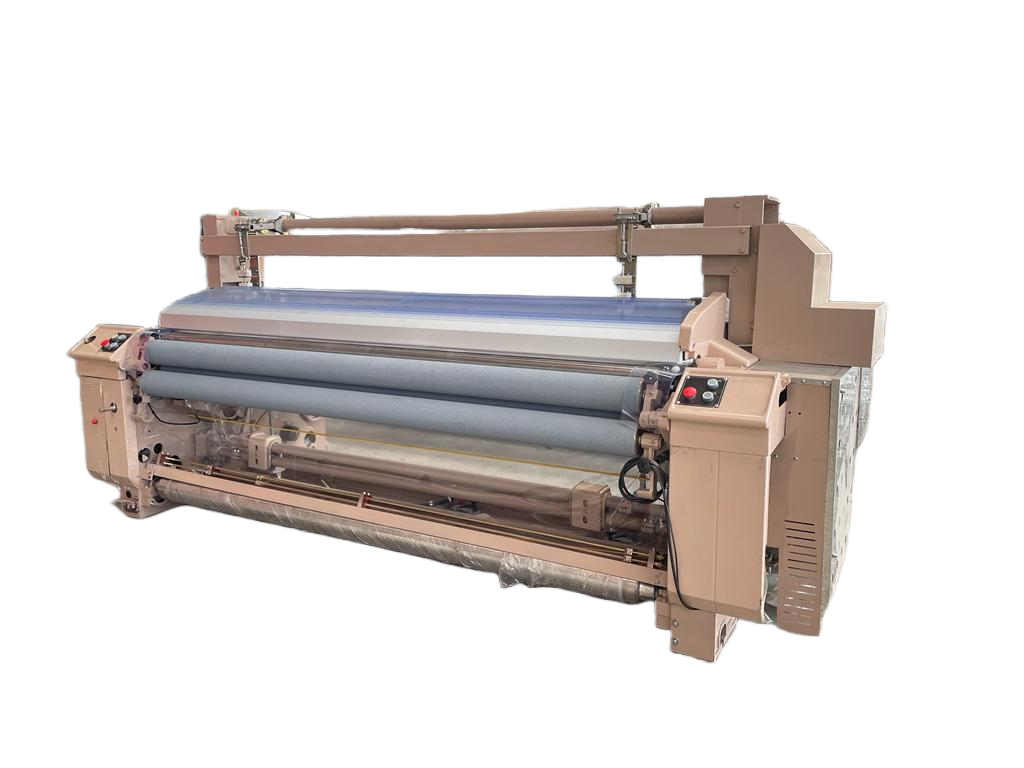

Strong frame and loom body,electronic feeder and automatic weft density change ensure smooth running, high efficiency and better fabric quality. This design cuts the production cost and makes the operation and maintenance much easier.
|
织机幅宽 Reed space |
110cm |
150cm |
230cm |
260cm |
360cm |
460cm |
|
有效工作幅宽 Working width |
100cm |
130cm |
210cm |
240cm |
340cm |
440cm |
|
入纬选择 Weft insertion |
单泵单喷 1 pump, 1 nozzle |
|||||
|
积极凸轮柱塞水泵 Positive cam plunger water pump |
||||||
|
间歇可调环形喷嘴 Intermittent adjustable annular nozzle |
||||||
|
测长及储纬装置 Measuring and weft storage |
电子储纬器 Electronic feeder |
|||||
|
纬密调节 Weft density change |
齿轮机械调整 By gear |
|||||
|
变频自动调整 Inverter automatic change |
||||||
|
探纬装置 Weft feeler |
光电感应式探纬 Photoelectric induction weft detection |
|||||
|
电机功率 Motor power |
2.2~4.5kw |
|||||
|
辅助功率 Auxiliary power |
0.7~1.5kw |
|||||
|
开机速度 Speed |
250~700rpm |
|||||
|
开口 Shedding |
下置式曲柄开口 Crank shedding at bottom |
|||||
|
送经 Let-off |
机械连续送经 Mechanical let-off |
|||||
|
卷取 Take-up |
电子积极式连续卷取装置 Electronic take-up |
|||||
|
最大卷布直径 1500mm Max. Winding diameter 1500mm |
||||||
|
可织网格布范围 Leno mesh range |
网格布克重GSM: 10~70gsm(up to the yarn quality) |
|||||
|
最大丝宽 Max. Weft yarn width: 4mm |
||||||
|
最小丝厚 Min. Weft yarn thickness: 0.05mm |
||||||
|
织造密度 Weaving density: 1~3/inch |
||||||
